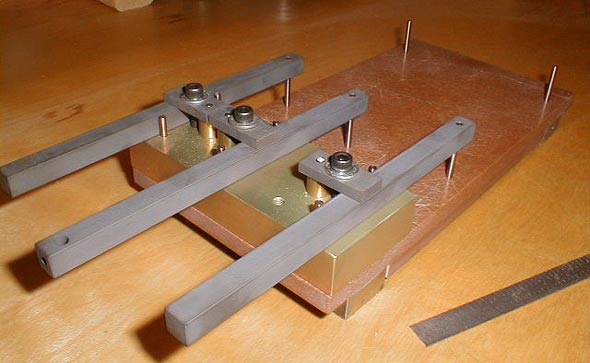

By Larry Geddes - This should be the
last jig I ever need. It is not only fully adjustable over a wide range,
but is extremely robust in its construction.
The surface has been ground flat to less than .001" overall. The middle arm with a hole at both
ends can be reversed for either 1/8" or 3/16" guide posts.
The wheelbase and guide lead adjustment range covers the whole
spectrum from small 1/32 cars to large 1/24 cars. The jig is also quite heavy, so I won't
be chasing it all over the bench with my soldering iron.
Thanks for letting me share this project with your readers!
Larry Geddes, July 25, 2003
|
