Robert Blaschke: 1970 Wendell Scott Ford Torino

Robert Blaschke brings back the old memories, with his #34 Wendell Scott Torino. Thanks Robert!

Robert Blaschke writes:

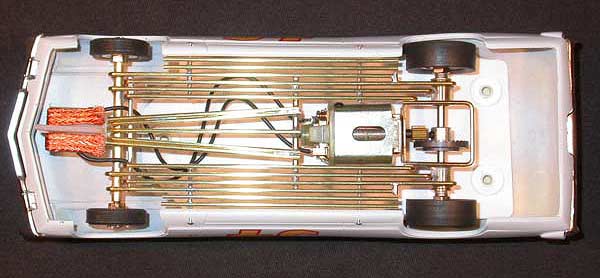

I built the Wendell Scott #34 replica for my father-in-law as a Christmas gift. Basically the chassis is a Morrissey Sports Car Frame built to fit a 1/25 scale 1970 Ford Torino Model kit. The chassis was built to have 1/16" track clearance with 7/8" rear tires and 3/4" front tires. The wheelbase is 4 9/16".

The car was tested on the Slot Car Emporium's King and even though down on power ran very well. Since the car most likely will not be run, after testing the car I decided to change the tires to 1" rear and 7/8" front to give the car a more realistic look.

To do this successfully, I had to raise the front axle tube to get the car to sit properly with larger tires for display.

Robert Blaschke: 1970 Wendell Scott Ford Torino

List of materials:

Chassis:
Motor bracket - American Line 16D REH #3000
1/16" brass rod - Chassis main rails and drop arm
1/16" brass tubing - Body mount tubes
3/32" brass tubing - Drop arm hinge
5/32" brass tubing - Front axle tube
3/16" brass tubing - Guide post sleeve
9/32" brass tubing - Rear axle bushing holder
(inside diameter of tubing must be slightly enlarged for proper Oilite fit)
1/8" Oilite bushing

Body:
1970 Ford Torino MCW FAL 70

Paint:
MCW #5941 Light Blue

Wheels and Tires:
Rear Wheels/Tires - Concours D'Elegance #CON 2200
Front Wheels - Booth Machine
Knock-Off Nuts - Concours D'Elegance #CON 2047

Note: MCW is Model Car World, providing modelers with thousands of factory-original paint colors, plus many resin-cast replica bodies.
